Viplax

The Viplax product family provides a potential- and loss-free transmission of analog signals over fiber optics. Low noise and short propagation delays are outstanding core characteristics of the system. Each system consists of a transmitter unit, a receiver, power supply units and fiber optic cable. The analog signals are converted in the transmitter into a digital data stream and transmitted bit-serially through the optical fiber. The receiver converts this stream back into an analog signal.

Transmitters and receivers are available as 3U 19 inch cassettes or in a small mobile housing. Additional accessories include batteries for the power supplies, rack components and fiber optics in any length. We also provide customized accessories if you need them.

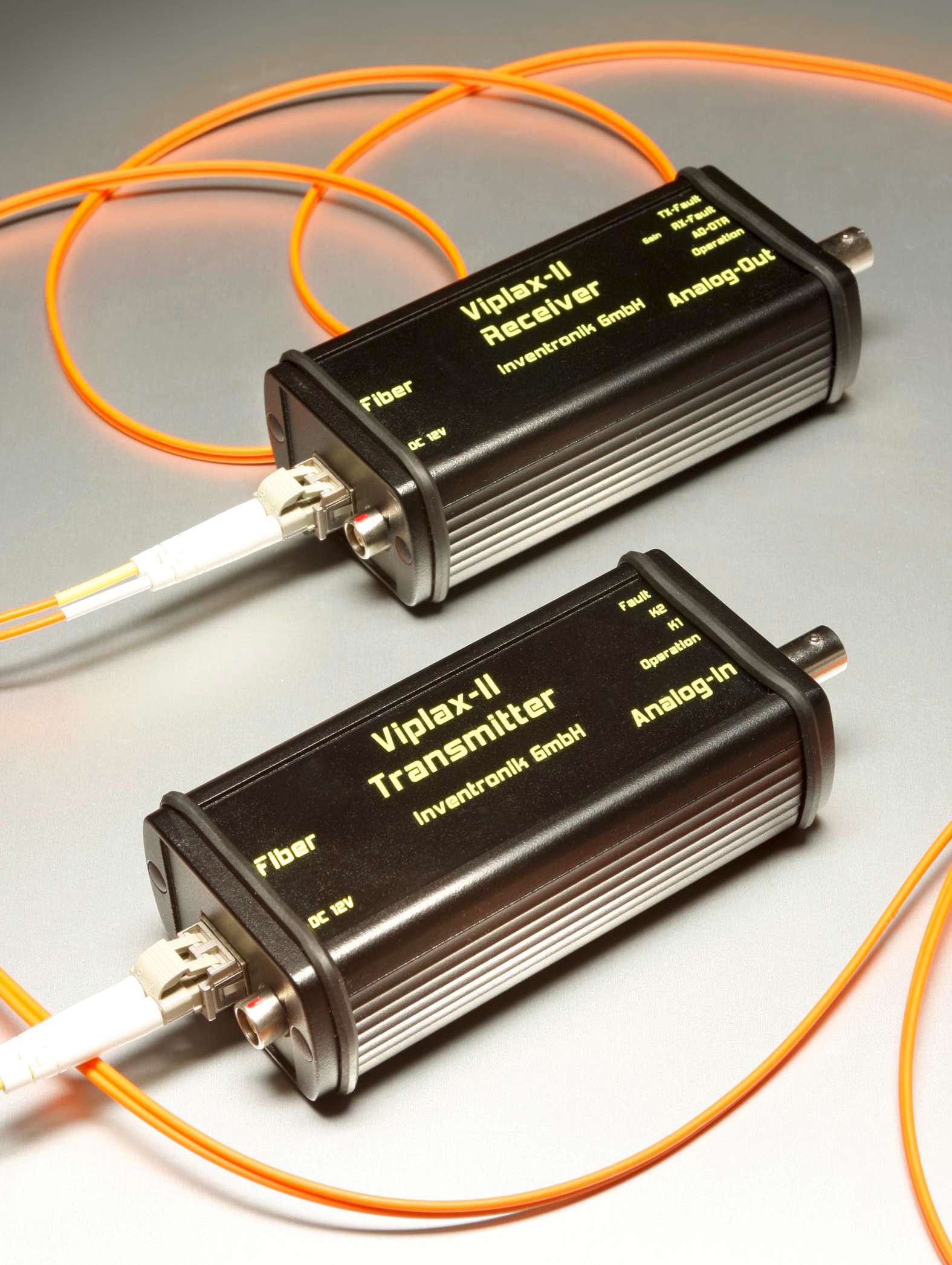

Viplax-II

Inventronik GmbH now offers Viplax-II, a worthy successor for our well-established Viplax-I This new system is in many ways based on Viplax-I and the experience we have gained over the years. Viplax-II transmits both analog and digital signals over a fiber optic cable. Analog signals are fed into high-quality 14-bit Analog/Digital converters, which in return, are converted to an analog signal on the receiver side. Digital signals of the Viplax II are converted to a serial format and transmitted just like the analog signals. The system has a suitable error correction system and a fail-safe architecture to switch to a safe condition in case of an error. The possibility to include customizations creates a powerful transmission system for critical environments and difficult measurement tasks.

Inquiries

We hope, with our descriptions to have given you a first impression about our Viplax product family. For product and price inquiries please use our contact form.

Comparative Table

Properties Viplax-I Viplax-II
Input Voltages ± 1, 2, 5, 10, 20, 50, 100V ± 1, 2, 5, 10V
A/D and D/A-Converter Resolution 14 bit / 14 bit 14 bit / 14 bit
Sampling Rate 10Msps 36Msps
Signal-Noise-Ratio >65db >73db
Effective Number of Bits >12.2 bit >12.1 bit
3dB Frequency: approx. 2 MHz (Filter dependent) 10 MHz (Filter dependent)
Signal Propagation Delays <400 ns <0.5 us
Housing Handheld / 19-Inch Handheld / 19-Inch
Handbook Viplax-I Viplax-II
You can download our extended version of the Viplax comparison table here..
